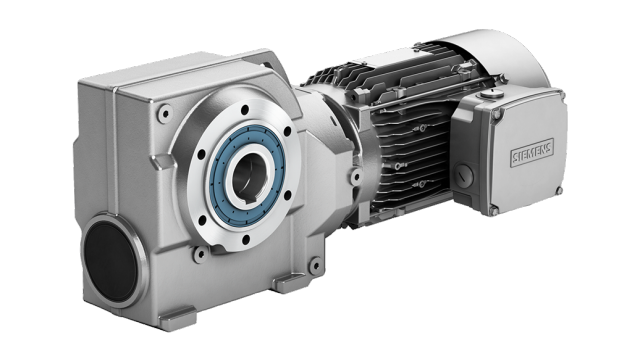

Helical Worm
SIMOGEAR helical worm geared motors represent a cost-effective solution for angular geared motors in the lower torque range. Offered in a 2-stage version in solid and hollow shafts, they are energy efficient and usually chosen for applications requiring angular gear motors. Due to its worm gear stage, high ratios can be implemented. They achieve high power density and extremely low noise, and are used for example in wastewater system and as stage drives in theaters.
Ratings
|
|
2-stage
|
|---|---|
|
Number of sizes available
|
5
|
|
Output torque
|
45 - 11,000 ft-lb (61 - 14,500 Nm)
|
|
Ratio
|
6.5 – 363
|
|
Motor power range
|
1/3 - 10 Hp (7.5 kW)
|
|
Features
|
• Integrates with Siemens drives and automation • Energy efficient (Mechanical efficiencies up to 96%) • NEMA Premium® motors • 2-stage construction • Foot, flange mounting • Solid shaft, hollow shaft, hollow shaft with splined shaft, hollow shaft with shrink disk, and SIMOLOC keyless tapered shaft locking system |
